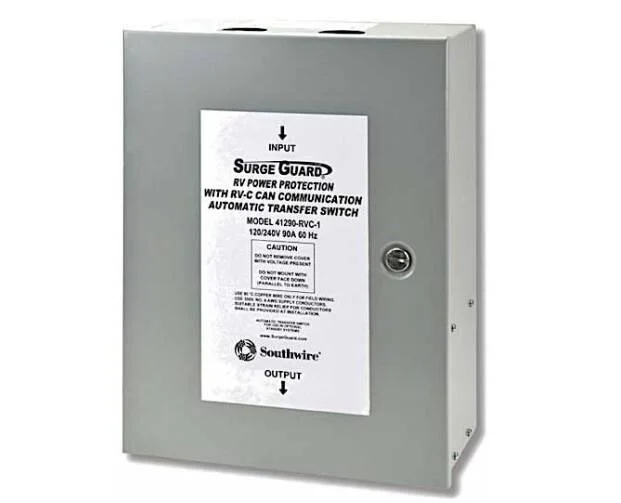

Southwire RV Power Protection With RV-C Communication Automatic Transfer Switch • 41390RVC

Description

• Type: Automatic

• Function: Transfer Power Between Shore And RV Generator

• Voltage: 120/ 240 Volt AC

• Ampere Rating: 90 Amp

• Terminal Type: Screw

• Length (IN): 5.58 Inch

• Width (IN): 3.31 Inch

• Height (IN): 7.62 Inch

• Color: Black

• Mounting Type: Wall Mount

• RVC Communication Allows Instant Display Of Voltage, Current And Fault Conditions On An RVC Compatible Device

• Provides The Following Protection: Multi-Mode Surge Suppression. Mis-Wired Pedestal. Open Neutral. Open Ground. Reverse Polarity. High And Low Frequency

• Optional 2-Line Plain English Display With Continuous Visual Indication Of Source Voltage, Load Current Or Diagnostics

• Transfers To Generator Power Automatically When Energized After 30 Second Delay

• 3350 Joules Of Power Surge Protection

• Limited 90 Day Warranty
