Description

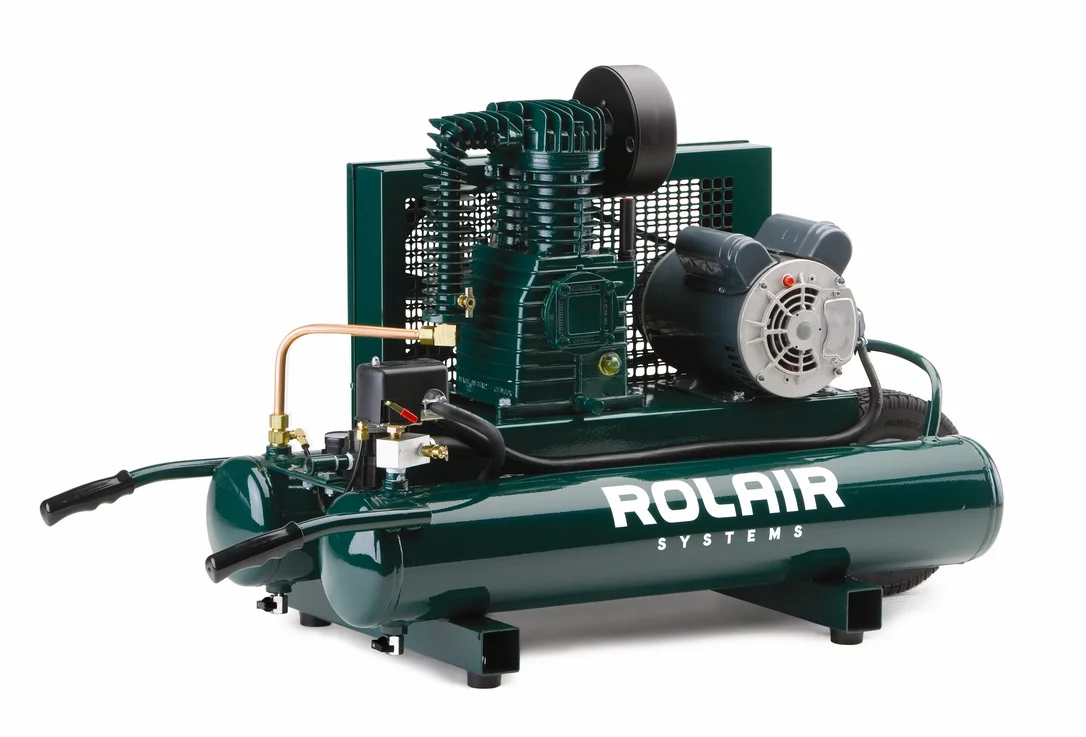

Rolair 6820MK103D-0001 9 Gallon 2 HP Portable Air Compressor
Model 6820MK103D is a sister model to 6820K17D. This model provides nearly as much air as the 6820K17D and is equipped with a dual-voltage switch, allowing you to run on 110 or 220 Volt as needed.
About the Pump
Heavy-Duty, Two Cylinder, Single Stage, Splash Lubricated, High-Efficiency Reed Valve Design, Aluminum Alloy Connecting Rods, Multi-Finned 10″ Flywheel, Oil Sight Gauge, and 17 oz. Oil Reservoir
About the Motor
2 HP, 1740 RPM, Open Drip Proof, 115/230 Volt – 60 Hz, Ball Bearings, Overload Protection with Manual Reset
Features:
• Dual Control Operation
• Square D Pressure Switch w/Unloader
• Pressure Gauge 0-200 in 5 lb. Graduations
• Accessory Support Clip
• Intake Filter with Silencer and Replaceable Element
• Air-Cooled Aftercooler
• Totally Enclosed Steel Belt Guard
• Safety Relief Valve
• Horsepower: 2
• CFM Displaced: 11 CFM
• CFM Delivered: 8.2 CFM @ 90 PSI
• Pump/Motor RPM: 1740
• Overload Protection: Yes (Manual Reset Standard)
• Lubrication Type: Splash Lubrication
• Pump Oil Capacity: 17 Ounces
• Reed Valve System: Yes (Standard)
• Number of Cylinders: 2
• Tank Capacity: 9 Gallons
• Dimensions L x W x H: 46″ x 19″ x 24″
