Description

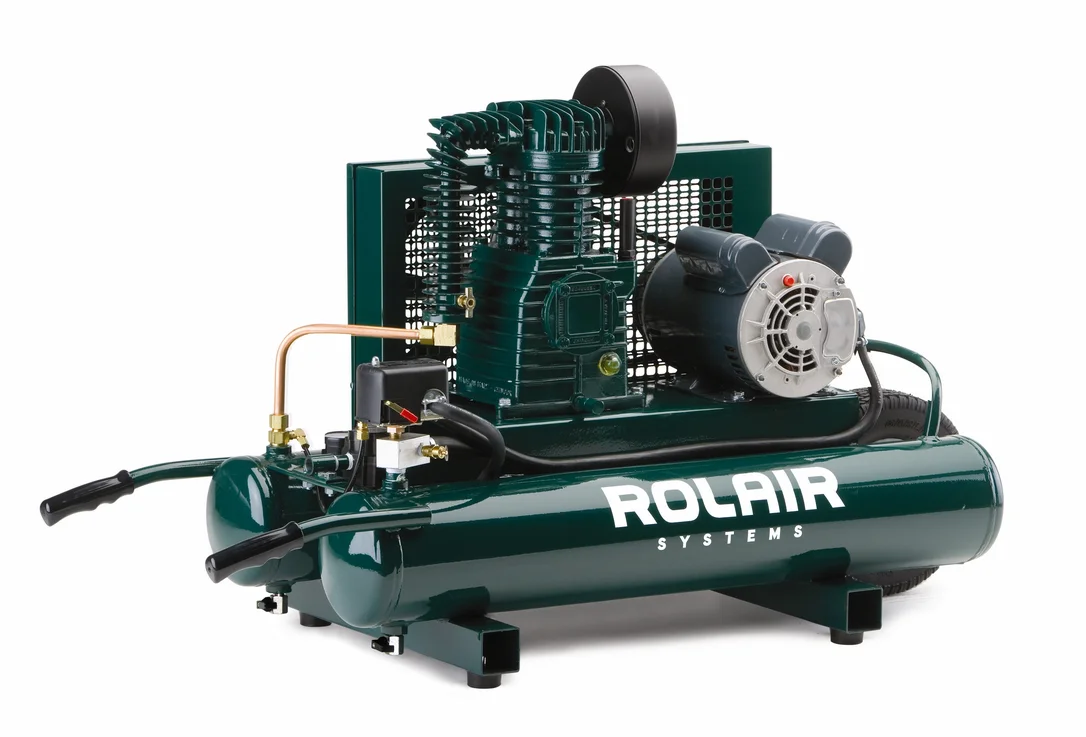

Rolair 6820K17D-0001 9 Gallon 2 HP Portable Air Compressor
Model 6820K17D includes a dual-control feature, which allows it to run start/stop or constant-speed operation. This model provides the most air available on a 110 Volt electric compressor, yet is equipped with a dual-voltage switch allowing you to run off 220 Volt when needed.
About the Pump
Heavy-Duty, Single Stage, Cast-Iron Twin Cylinders, Ball Bearings, Splash Lubricated, Hardened Steel Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy Connecting Rods with Automotive-Style Inserts, Multi-Finned 11″ Flywheel, Oil Sight Gauge
About the Motor
2 HP, 1740 RPM, Open Drip Proof, 115/230 Volt – 60 Hz, Ball Bearings, Overload Protection with Manual Reset
Features:
• Dual Control Operation
• Pressure Gauge 0-200 in 5 lb. Graduations
• Square D Pressure Switch with Unloader
• Accessory Support Clip
• Intake Filter with Silencer and Replaceable Element
• Air-Cooled Aftercooler
• Totally Enclosed Steel Belt Guard
• Safety Relief Valve
• Dual Voltage Switch
• Horsepower: 2
• CFM Displaced: 12.5 CFM
• CFM Delivered: 8.8 CFM @ 90 PSI
• Pump/Motor RPM: 1740
• Overload Protection: Yes (Manual Reset Standard)
• Lubrication Type: Splash Lubrication
• Pump Oil Capacity: 34 Ounces
• Reed Valve System: Yes (Standard)
• Number of Cylinders: 2
• Tank Capacity: 9 Gallons
• Dimensions L x W x H: 46″ x 19″ x 28″
