Description

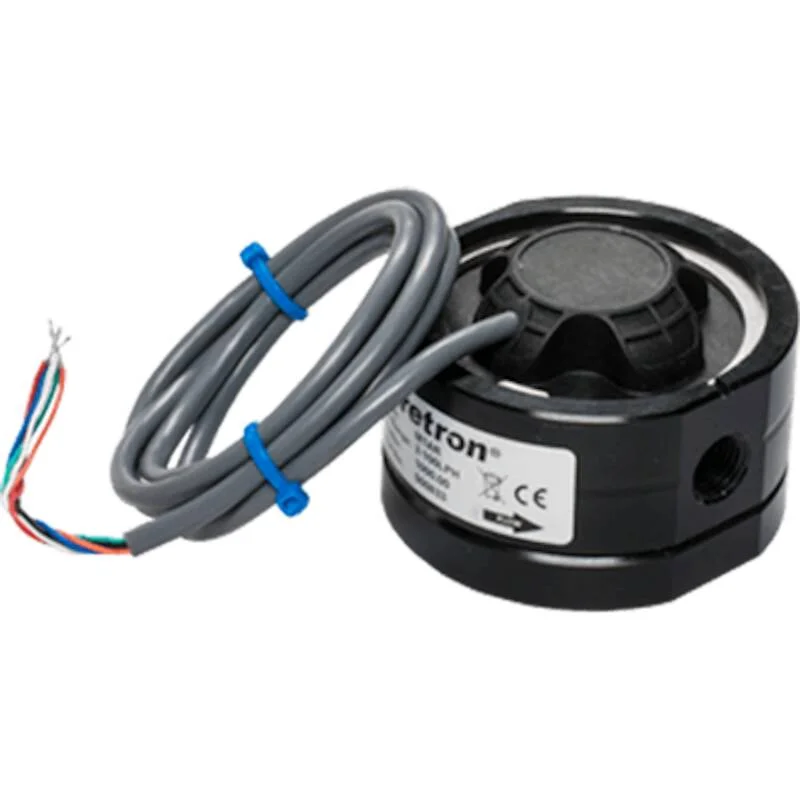

When fluid passes through the sensor, the internal rotors turn. Magnets which are located in the rotors will pass across sensors in the sensor circuit board. Pulses from these sensors are transmitted to the FFM100 which performs flow rate calculations based on the received pulses.
- Operating Temperature: -40°C to 80°C (-40°F to 176°F)
- Storage Temperature: -65°C to 170°C (-85°F to 338°F)
- Port Size: 1/4″ NPT Female
- Cable Length: 1M (3.28 ft)
- Maximum Viscosity: 1000 cPs
- Pressure: 68.95 Bar (1000 PSI)
- Strainer Size: 200 Mesh (If not already installed after fuel filter)
