Description

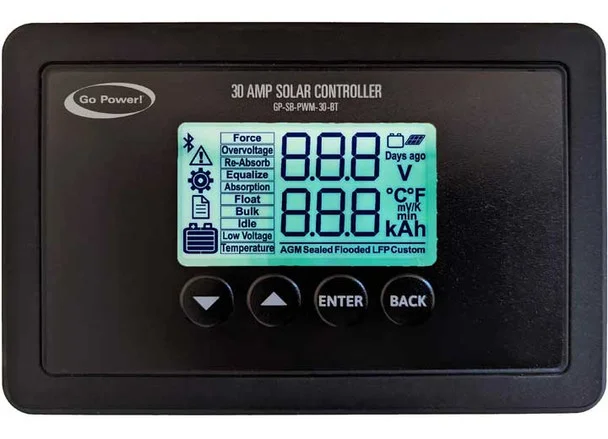

The Bluetooth®-enabled, GP-SB-PWM-30BT is a 12 volt flush-mounted, single-bank, photo-voltaic (PV) charge controller rated for a continuous solar current input of 30 amps. Easy to install with screw cover plate, and features improved Bluetooth® performance for remote system monitoring. Included in most popular kits. Available in Wired for Solar™ pre-wired RVs.
A solar controller is an essential component of your photovoltaic (PV) system. The controller maintains the life of the battery by protecting it from overcharging. When your battery has reached a 100% state of charge, the controller prevents overcharging by limiting the current flowing into the batteries from your solar array. The Bluetooth®-enabled GP-SB-PWM-30BT is a 12 volt flush-mounted, single-bank, photo-voltaic (PV) charge controller rated for a continuous solar current input of 30 amps.
FEATURES
Bluetooth® ready with the Go Power! Connect app
Regulates current flow from your solar modules to your batteries.
Temperature compensated pulse width modulation (PWM) charging
4 battery charging profiles: Sealed/Gel, AGM, Flooded and LiFePO4 (lithium)
4 stage charging: Bulk, Absorption, Float and Equalize
Back lit LCD screen displays charging current, battery voltage and battery state of charge
Heavy-duty terminals for low resistance connections
Suitable for 12V solar systems up to 30 amps
5-year warranty
