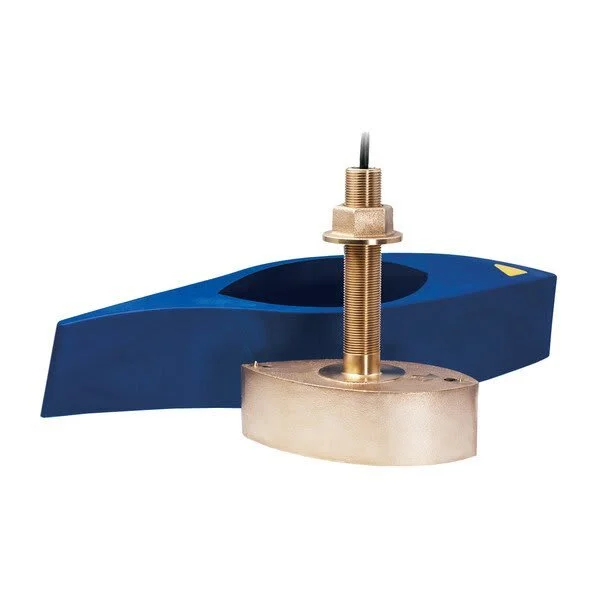

Garmin Airmar B275LHW 12-Pin Bronze External Thru-hull Mount Transducer with 39′ Cable • 010-12183-20

Description

Airmar B275LHW 12-Pin Bronze External Thru-hull Mount Transducer with 39′ Cable (010-12183-20) by Garmin®. Measures: Depth/Temperature. Frequency: 42-65kHz/150-250kHz. Max Power: 1000W. Accommodates Deadrise: 19° – 25°. Designed for coastal fishing with an operating frequency range of 150-250 kHz. This CHIRP transducer has a constant 25° beam width provides increased coverage under the boat. Designed for boats 25′ and above with fiberglass or wood hulls.

• Frequency: Low (42 – 65 kHz); High (150 – 250 kHz)

• Power: 1kW

• Maximum depth: 3,000′

• Depth/Speed/Temperature: Depth and Temperature

• Number of pins: 12-pin

• Cable length: 12 meters

• Supported deadrise/Transom angles: 19-25 degrees

• Limited 1 Year Warranty

• Includes: Transducer and 39′ Cable
