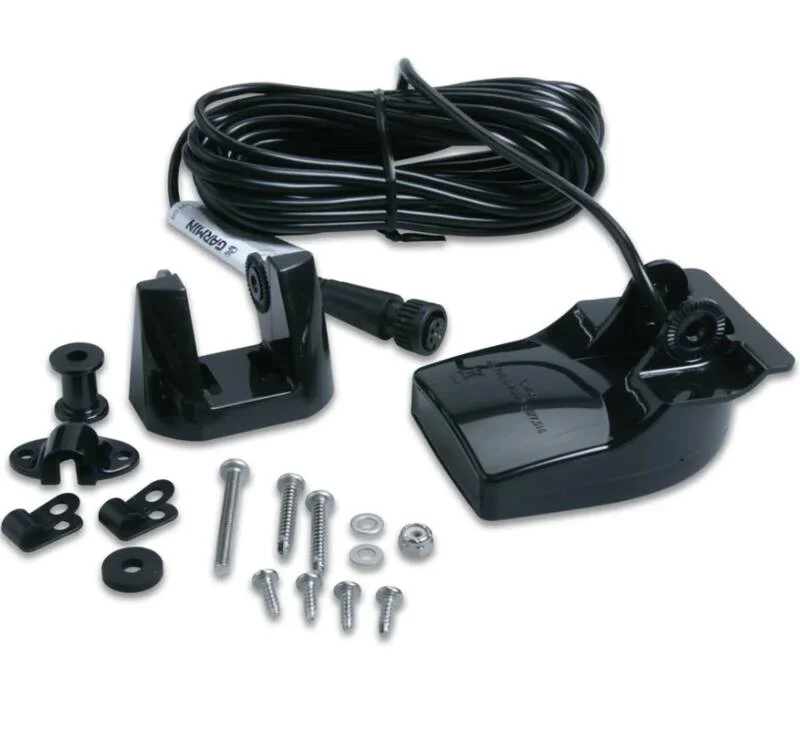

Garmin 8-Pin Plastic Transom Mount Transducer with 30′ Cable • 010-10272-10

Description

8-Pin Plastic Transom Mount Transducer with 30′ Cable (010-10272-10) by Garmin®. Measures: Depth/Temperature. Frequency: 50/200kHz. Max Power: 500W. Accommodates Deadrise: 0° – 70°. This plastic transom mount can be used to replace the dual frequency transducers included with many Garmin units. The 500 W 8-pin transducer has a maximum depth of 1,500′; an operating frequency of 50 to 200 kHz; a beamwidth of 40 to 10 degrees; and mounts on a 0 to 70 degree transom. Follow the instructions carefully to avoid damaging your boat.

• When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required
• The 6-pin transducer is preferred
• Frequency (kHz): 50/200
• Power (W): 500
• Beam Width (Deg.) LF/HF (-3dB): 40/10
• Max. Depth (ft.): 1500
• Depth/Speed/Temp: D/T
• # of Pins: 8
• Cable Length (ft.): 30
• Supported Deadrise/Transom Angles: 0-70 Deg. Transom
• Limited 1 Year Warranty

Includes:

• Transducer
• 30′ Cable
• Installation instructions
