Description

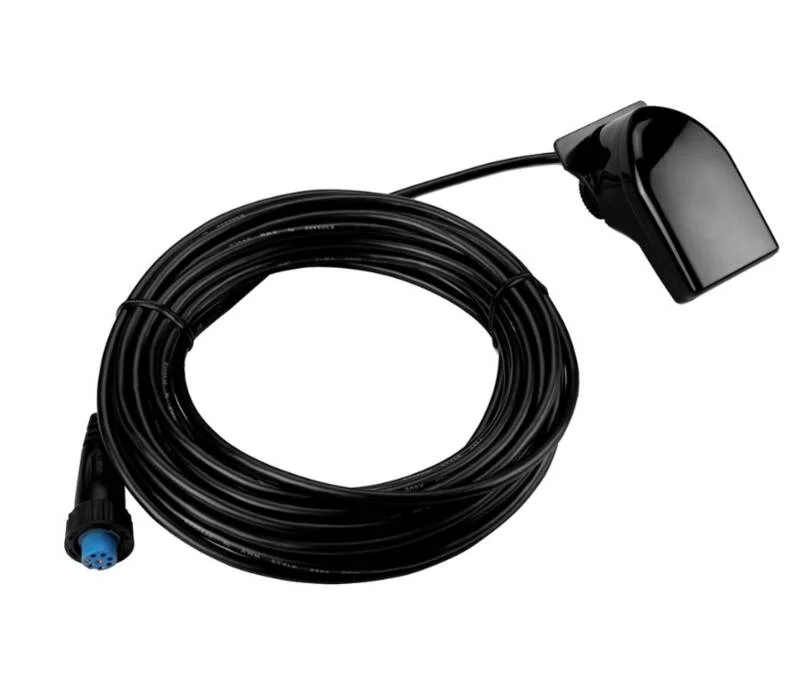

8-Pin Plastic Transom Mount Transducer with 30′ Cable (010-10249-40) by Garmin®. Measures: Depth/Temperature. Frequency: 77/200kHz. Max Power: 500W. Accommodates Deadrise: 0° – 70°. This dual beam transducer replaces the one included with your echo™ series fish finder. A 500 W 8-pin transducer, it has an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees; and mounts on a 0 to 70 degree transom. Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
-
When using with the echo fish finders, transducer adapter cable, 010-11947-00, is required
-
Transducer, 010-10249-20, is preferred
-
Frequency (kHz): 77/200
-
Power (W): 500
-
Beam Width (Deg.) LF/HF (-3dB): 45/15
-
Max. Depth (ft.): 1900
-
Depth/Speed/Temp: D/T
-
# of Pins: 8
-
Cable Length (ft.): 30
-
Supported Deadrise/Transom Angles: 0-70 Deg. Transom
-
Limited 1 Year Warranty
-
Includes: Transducer and 30′ Cable
