Description

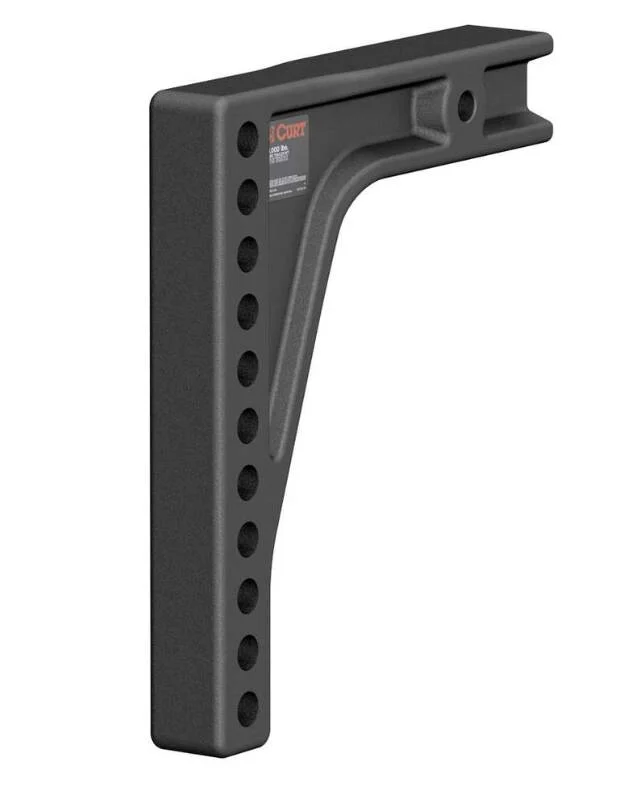

This CURT replacement weight distribution shank is compatible with all CURT weight distribution hitches. It can be used to replace a damaged shank or to give your WD hitch greater flexibility in vertical adjustment. It features a standard 2-1/2″ shank, multiple mounting options and a high-strength construction that is fully tested for tough jobs and harsh conditions. The 2-1/2″ horizontal shank is designed to fit any 2-1/2″ x 2-1/2″ trailer hitch receiver. This makes it the perfect choice for a CURT Commercial Duty class 5 hitch or other heavy-duty hitches with 2-1/2″ receivers. The shank features rounded edges for easier insertion into the receiver tube, and it has a 5/8″ diameter hole to accept a hitch pin or hitch lock for secure mounting in the receiver. This particular weight distribution shank is 14-1/2″ high by 12-1/2″ long, measured from the outermost holes center-to-center. Each hole in the vertical shank has a 3/4″ diameter, and they are spaced 1-1/4″ apart for a wide range of incremental adjustment of the WD head. With an overall height of 14-1/2″, this WD shank provides a maximum drop of 8″ (not rated for use in rise position).
- Provides an adjustable mount for any CURT weight distribution hitch
- Rated for 15,000 lbs. gross trailer weight and 1,500 lbs. tongue weight
- Features multiple holes for adjustable head height
- 3/4″ diameter holes are spaced 1-1/4″ from center to center
- Fits 2-1/2″ x 2-1/2″ hitch receiver tube opening with 5/8″ hitch pin hole
- Constructed from solid steel for reliable strength
- Protected by a highly durable carbide black powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
- Includes shank only (weight distribution hitch sold separately)
