Description

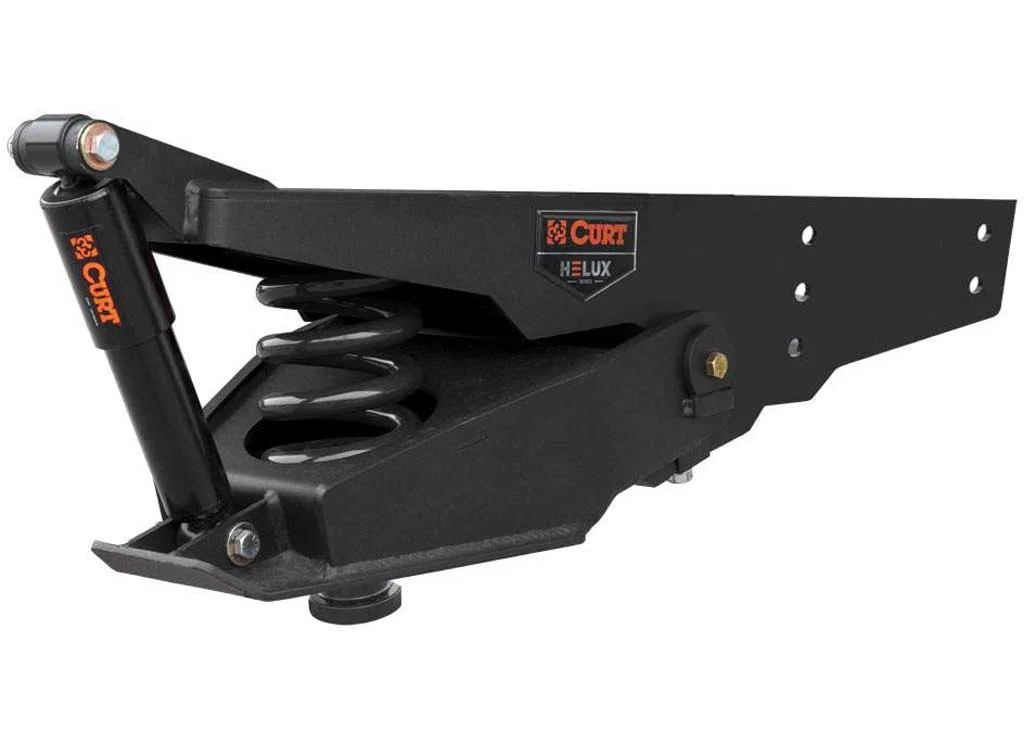

CURT Helux Coil-Spring 5th Wheel Pin Box – 18,000 lb Capacity (2,950 lb Max / 1,360 lb Min Pin Weight) • 2024044567
Upgrade your towing experience with the CURT Helux™ Coil-Spring 5th Wheel Pin Box — engineered to deliver a smoother, quieter ride while protecting your RV frame and cargo. Designed for heavy-duty fifth-wheel trailers up to 18,000 lbs GTW, the Helux™ uses automotive-grade coil and shock technology to reduce impact transfer by up to 30% compared to similar pin boxes, creating a more comfortable and controlled towing experience.
Key Features:
-
Up to 18,000 lb Capacity / 2,950 lb Max Pin Weight (1,360 lb Min): Handles large fifth-wheels with confidence while maintaining stability.
-
Proprietary Coil + Shock System: Reduces chucking, jarring, and vibration to protect your trailer, hitch, and cargo.
-
30% Less Force on RV Frame and Body: Tested performance that minimizes wear and fatigue on structure and mounting hardware.
-
Automotive-Grade Coil Spring: Provides a smooth ride that’s easier on passengers and pets.
-
Maintenance-Free Operation: No air bags, no pressure checks—install it and go.
-
Direct Bolt-On Fit: Compatible with Rhino Box bolt-mounting pattern and approved for Lippert RV frames (will not void warranty).
-
Safety Tested: Meets SAE J2638 standards for strength and durability.
-
Heavy-Duty Steel Construction: Built in the USA with robust welds and a black powder-coat finish for corrosion resistance.
-
No Break-In Period: Delivers immediate, consistent damping performance.
-
Hardware Included: Comes complete with mounting bolts for quick installation.
-
Not Compatible With: Offset 5th-wheel hitches. Returns not accepted after installation.
Technical Specifications:
-
Brand CURT®
-
Model / Part # 2024044567
-
Product Name Helux™ Coil-Spring 5th Wheel Pin Box
-
Gross Trailer Weight (GTW) 18,000 lbs
-
Pin Weight Range 1,360 – 2,950 lbs
-
Reduction in Force Up to 30% less frame/body stress vs comparable pin boxes
-
Mounting Pattern Rhino Box bolt-mount (Lippert-approved)
-
Construction Heavy-gauge steel with integrated coil and shock system
-
Finish Black powder coat
-
Testing Standard SAE J2638 Certified
-
Country of Origin USA
-
Includes Hardware Yes
-
Warranty Limited Lifetime (Structure) / 1-Year (Finish)
-
UPC 612314057849
-
Dimensions (L × W × H) 44″ × 24″ × 21″
-
Weight 169 lbs (99 lb dim weight)
-
Oversize / LTL Charge Yes – Ships via Freight
