Description

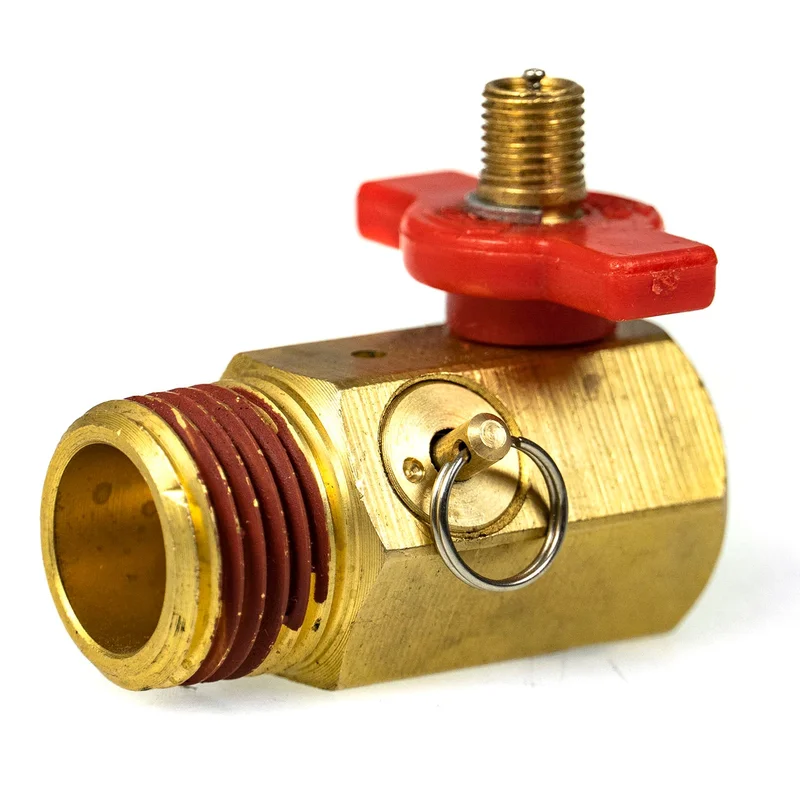

1/2″ NPT Combination Valve for Air Bubble Tanks
Brand new compressed air bubble manifold valve with relief. This valve has a 1/2″ Male NPT thread which screws into the tank. (Note: 1/2″ threads measure about 3/4″ in diameter. If needed these threads can be reduced or enlarged with a reducer.) This valve is great for replacing an existing valve and also works great if you’re making an air storage tank out of a compressor tank.
This valve is equipped with a 1/4″ Female NPT port for an air hose, as well as a 1/8″ Female NPT port for an air gauge, and a Schrader tire fill valve on the side (as shown) for filling the air bubble. The red knob connected to this valve allows you to easily turn on/off the airflow to the air hose. This manifold features a 145 PSI safety relief valve also known as a pop-off.
Specifications:
• Solid Brass Construction
• 1/2″ MNPT Tank Inlet
• 1/4″ FNPT Air Hose Connection
• 1/8″ FNPT Gauge Connection
• Red Air Flow Control Knob
• Schrader (Tire) Fill Up Valve
• Relief Valve – 145 PSI
