Description

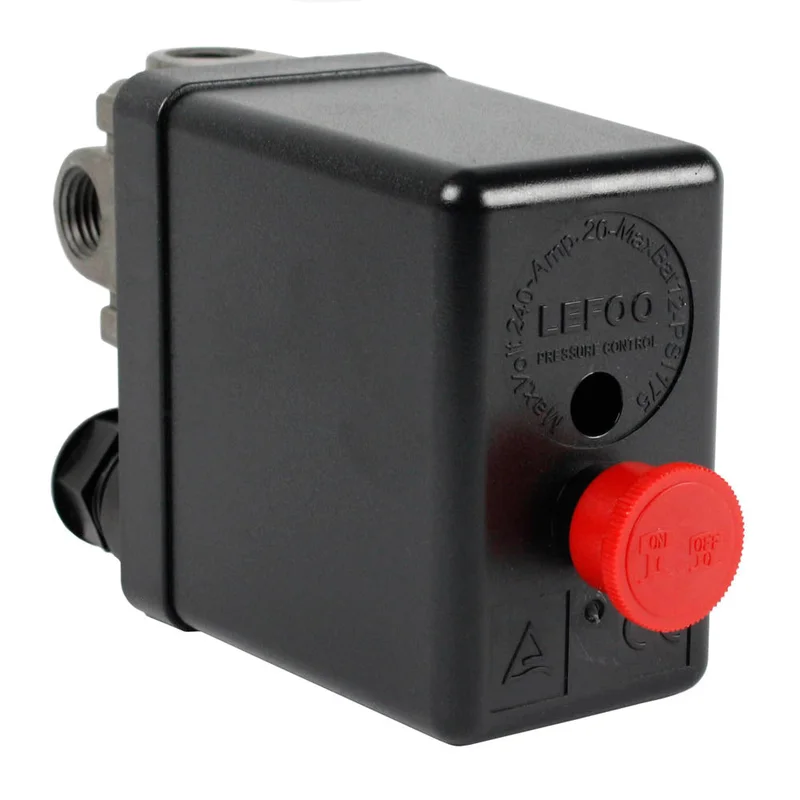

95 – 125 PSI 4 Port Pressure Switch 20 Amps
Brand new 95-125 PSI air compressor pressure switch or known as a pressure control valve that is used on many Hitachi, DeWalt, and Emlgo compressors. This switch has four ports on the bottom for air inlet hook up, which are 1/4″ female NPT. This switch is also equipped with an on and off push/pull style button and an unloader valve which is 1/4″ compression. For technical specifications please see below.
Specifications:
• Pressure Rating: 95 – 125 PSI
• Port Configuration: 4 Ports 1/4″ NPT
• Unloader Size: 1/4″ Compression
• Equipped with a Manual On and Off Push/Pull Style
• Pressure Setting is Adjustable
• Max Amp Rating on 230 Volts: 20 Amps
If you have a larger industrial compressor with a magnetic starter, the amps do not matter. All the switch is doing is telling the starter when to turn on and shut off.
